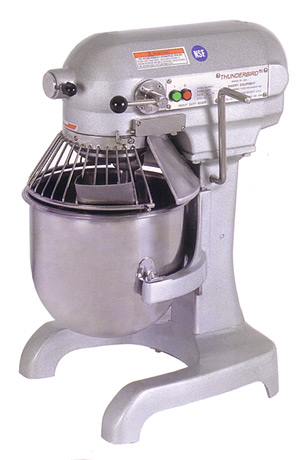

Planetary Mixer ARM-01

"Building the Best Valued Mixers for the Smartest Consumers!"


Design

Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

Features

  • 10-quart capacity
  • Powerful ½ HP motor
  • 115v/60/1, 8.5amps (220v/60/1 and 220v/50/1 available at additional cost)
  • 3-Speed gear box
  • Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
  • Motor cooling system.
  • New safety Guard available.
  • NSF approved coating.
  • Baked painting.
  • Moisture resistant switches
  • Motor thermal protector.
  • No-volt Release: Prevents activation of the mixer in the event of power interruption
  • Bowl lift: Manual bowl lift operated and self-locking in to position
  • #8 size taper hub for attachments
  • Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
  • Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle


Standard Accessories

  • 10-quart s/steel bowl.
  • Flat batter beater
  • Spiral dough hook
  • Wire whip
  • Safety bowl Guard
  • Attachment hub

Optional Accessories

  • #8 taper hub meat grinder (ARM-01A)
  • EXTENDED WARRANTY up to 6 years



Specifications

Motor: 3-speed
1/2HP continuous
8.5 amps
Electrical:
115/60/1
220v/60/1 and 220v/50/1 available
Speed Range:
Beater: 40-142
Hub: 97-350
Weight:
Net: 74lbs (34kg)
Ship: 83lbs (38kg)
Dimensions:

Width: 14'' (360mm)
Depth: 18'' (460mm)
Height: 24'' (610mm)

Shipping:
Width: 19'' (485mm)
Depth: 19'' (485mm)
Height: 29'' (740mm)
